SmartSense BZ Gateway

Our Commercial BZ Gateway provides remote monitoring and sensor network management via a Verizon LTE cellular connection. Up to 32 SmartSense Z Sensors and over 200 SmartSense B/B2 Sensors can be connected to each gateway.

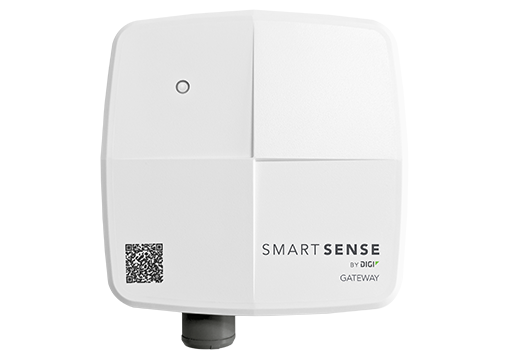

Spec Page Lockup-BZ Gateway

Plug and play cellular gateway with Zigbee® and Bluetooth® 4.0 networking capabilities to provide internet connectivity to all SmartSense sensors

Connect 200 B2/B Sensors or 32 Z Sensors to a single gateway

24+ hours of battery backup

Technical Specifications

SmartSense BZ Gateway Technical Specifications

Product SKU

TM-GW-BZ-VZW-C

Dimensions

3.9” x 3.9” x 1.6” (100mm x 100mm x 42mm)

Weight

10.3oz (293g)

Mounting

Cable ties or optional wall bracket

Network Requirements

Verizon LTE Cellular Coverage Area (Band 4 or 13)

Battery-Backup

24+ hours

Device Operating Range

5°C to 35°C (40°F to 95°F)

Environmental

IP67, UV resistant

Power Source

100VAC-240VAC, 50Hz/60Hz

Maximum Z Sensors

32 sensors

Maximum B or B2 Sensors

200+ sensors

Internal Battery

Li-ion rechargeable

Storage Temperature

Short-term (<3 months): -20ºC to 45ºC; Long-term: -20ºC to 25ºC

Warranty

1 year

Learn more about SmartSense BZ Gateway by downloading our datasheet

SmartSense is a complete compliance monitoring and enterprise visibility solution

SmartSense connects your operations to give visibility into the compliance and execution performance at all of your locations. Our end-to-end solution is designed and built by SmartSense to ensure implementation, performance, and support without compromise.

1 SmartSense Z Sensor and B2 Sensor

Wireless Sensors and Dataloggers

Calibrated sensors and data loggers are added to your critical assets and environments to record condition data. This data is used to trigger alarms when there is a problem and provide insight into the performance of your equipment.

2 SmartSense NEXT App and Bluetooth Probe

Digital Checklists and Tasks

Digitize HACCP compliance, daily sanitation logs, hospital crash cart audits, and more to take the guesswork out of SOP management.

3 SmartSense BZ Gateway

Cellular Gateways

Transfer data and provide a secure, self-contained, drop-in network connection with no IT support required. If power fails, our battery-backed gateways store sensor readings until connectivity is restored.

4 SmartSense Dashboard and NEXT App

Cloud Dashboard

Gain real-time oversight of your operations and business initiatives and actionable insights into compliance, site performance, and risks.
